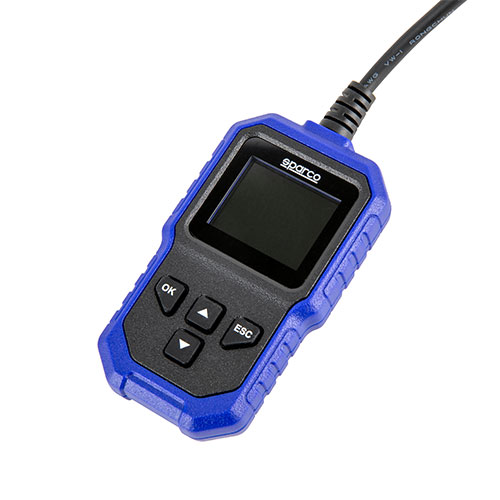

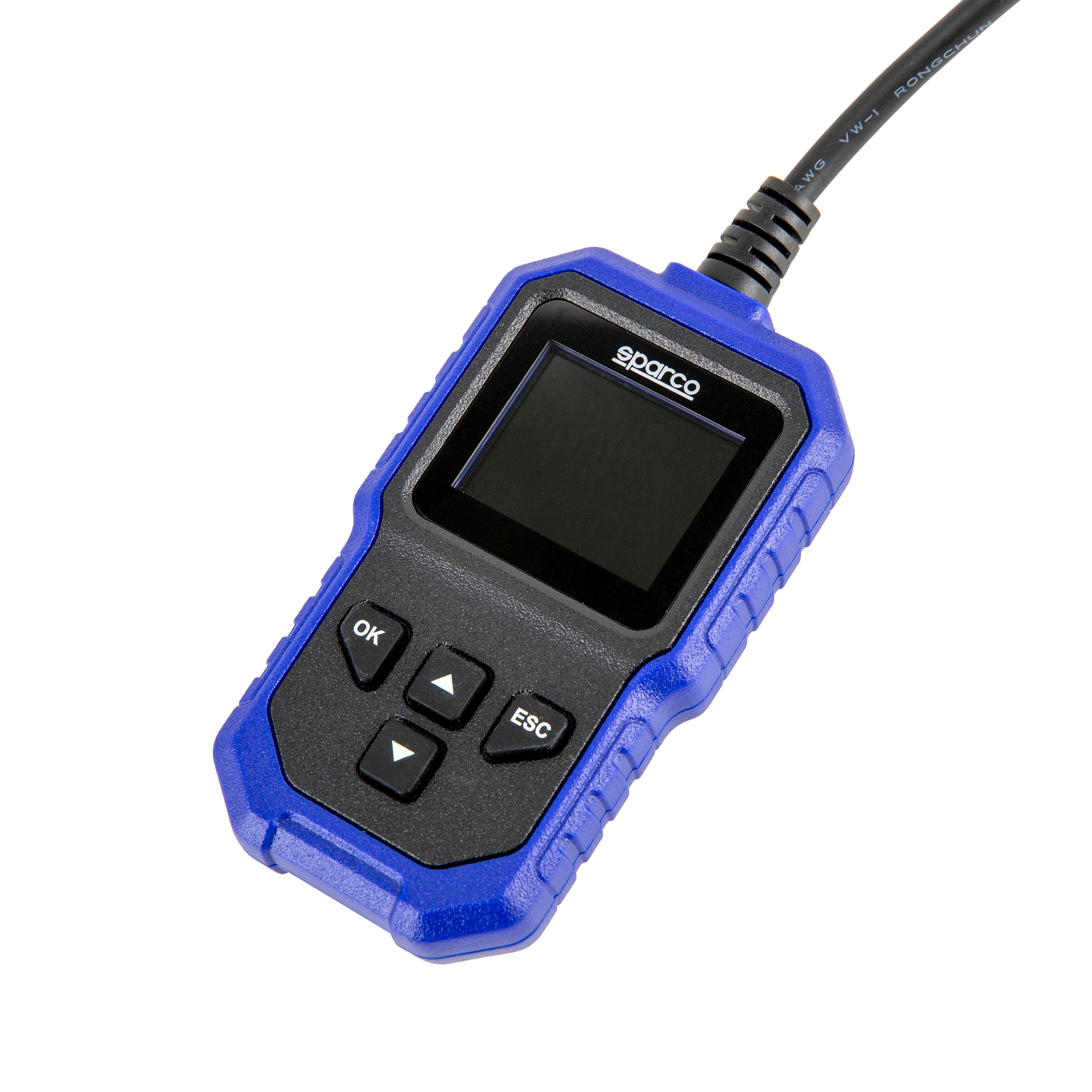

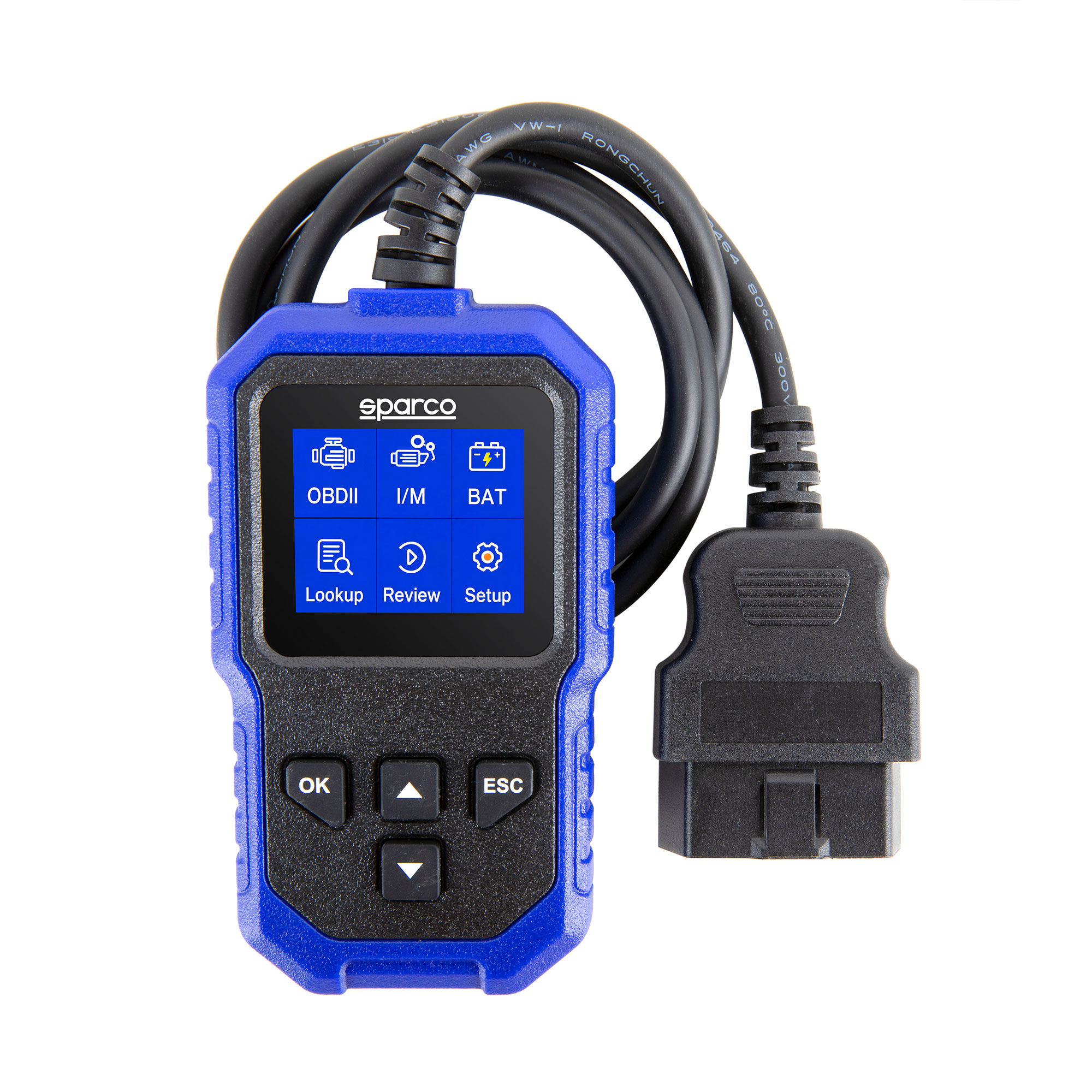

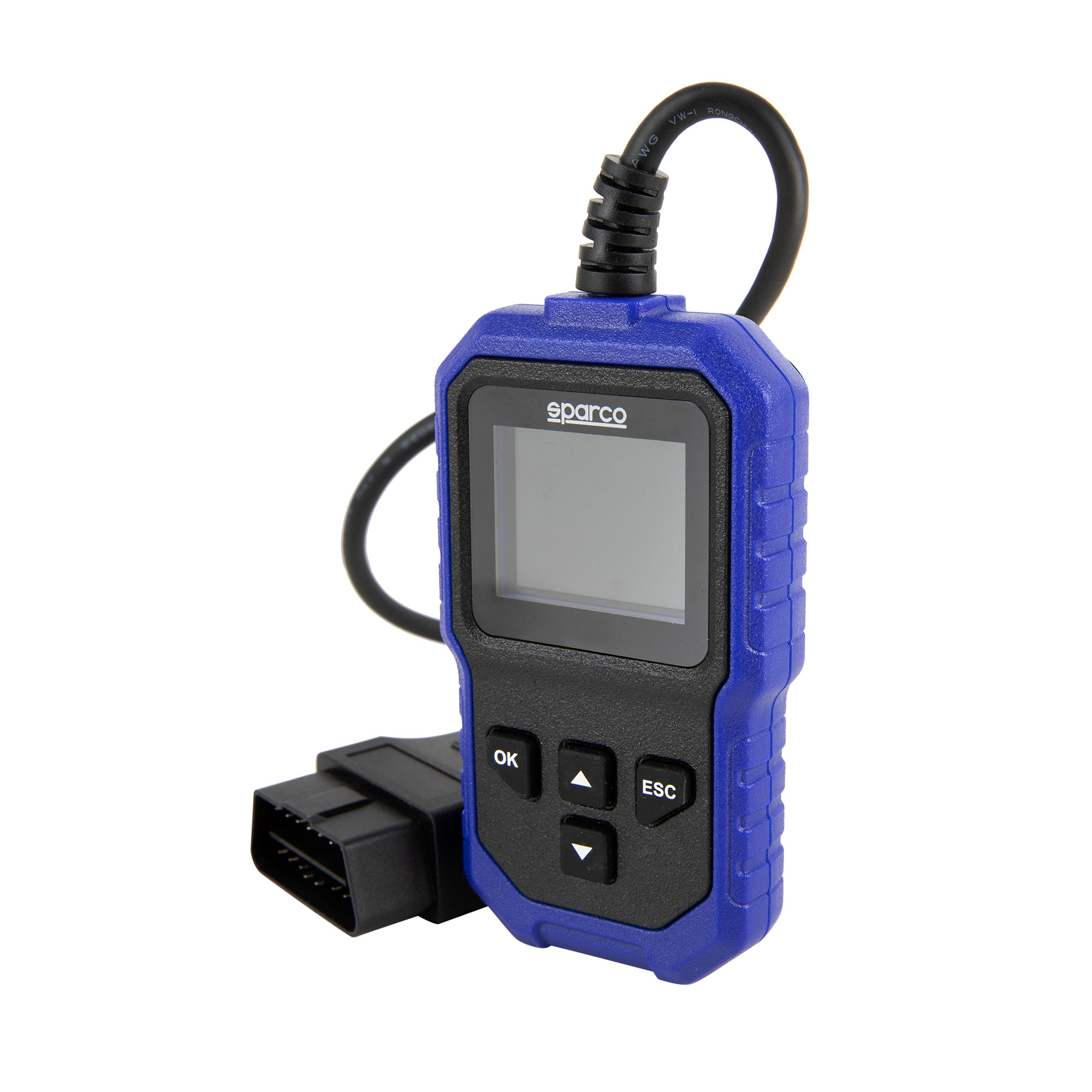

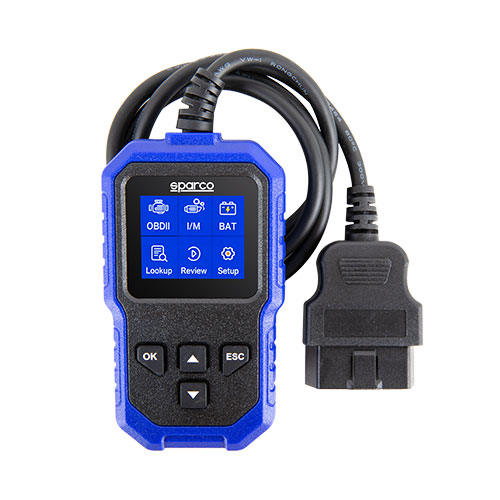

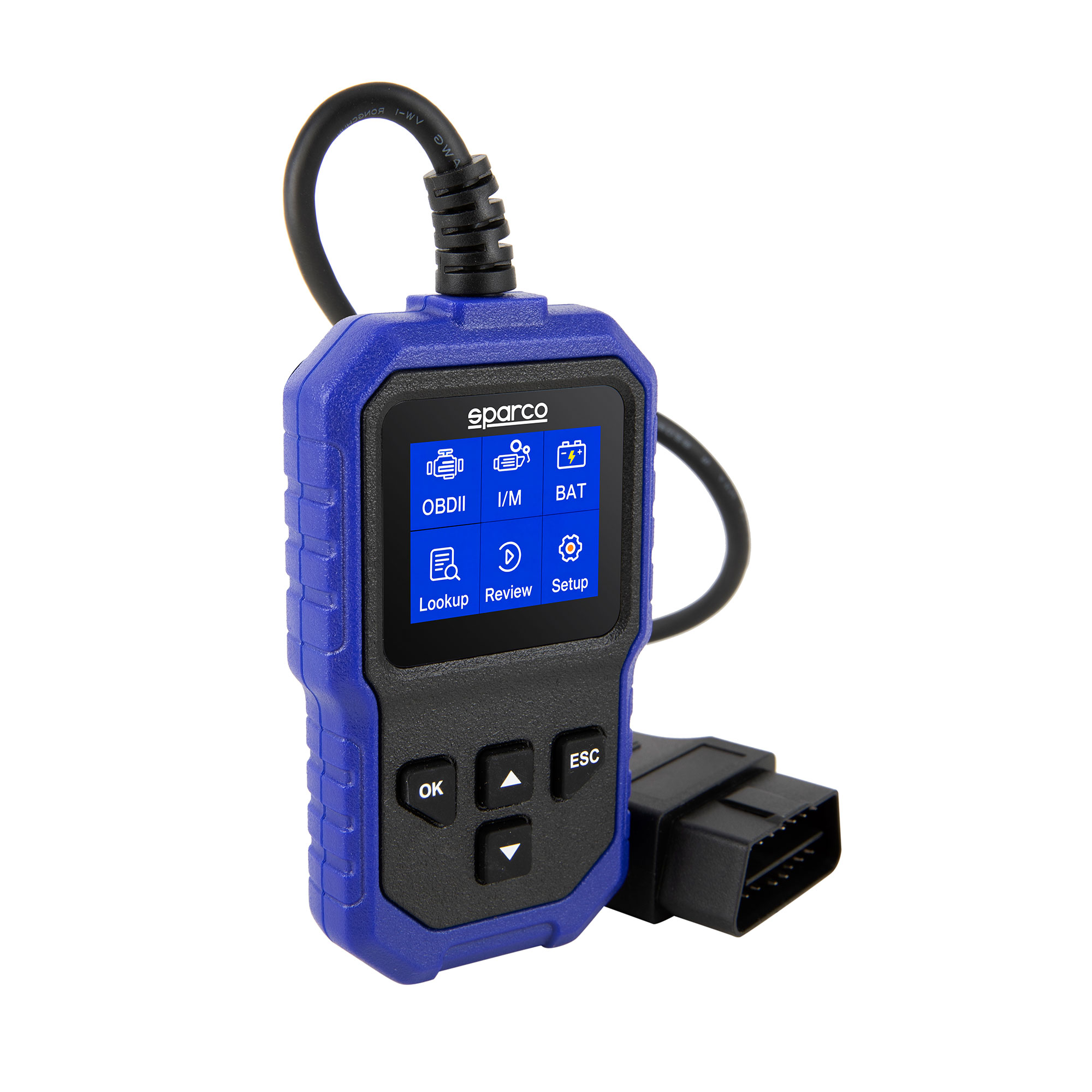

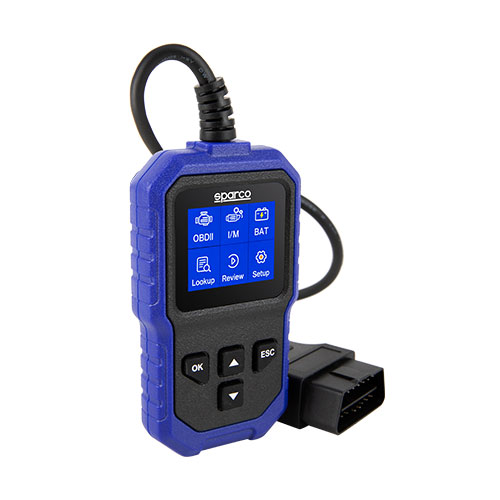

ODB2 SCANNER

Specifications:

• Operating voltage: DC 8V to 18V
• Operating current: 50mA
• Operating environment:
• Storage temperature:
• Product dimension: mm
• Support language:
  English, French, Spanish, German, Russian, Italian, Portuguese, Finnish, Dutch, Polish

Protocols:

• SAE J1850 PWM (41.6 Kbaud)
• SAE J1850 VPW (10.4 Kbaud)
• ISO 9141-2 (5 baud init, 10.4 Kbaud)
• ISO 14230-4 KWP (5 baud init, 10.4 Kbaud)
• ISO 14230-4 KWP (fast init, 10.4 Kbaud)
• ISO 15765-4 CAN (11-bit ID, 500 Kbaud)
• ISO 15765-4 CAN (29-bit ID, 500 Kbaud)
• ISO 15765-4 CAN (11-bit ID, 250 Kbaud)
• ISO 15765-4 CAN (29-bit ID, 250 Kbaud)

Function:
· Battery testing
· Cloud print
· Read codes
· Clear codes
· DTC query database
· Freeze frames data
· l/M readiness status detection
· Real-time data stream monitoring
· Vehicle information inquiry
· Mode 6
· Mode8
· Oxygen sensor detection
· Component testing
