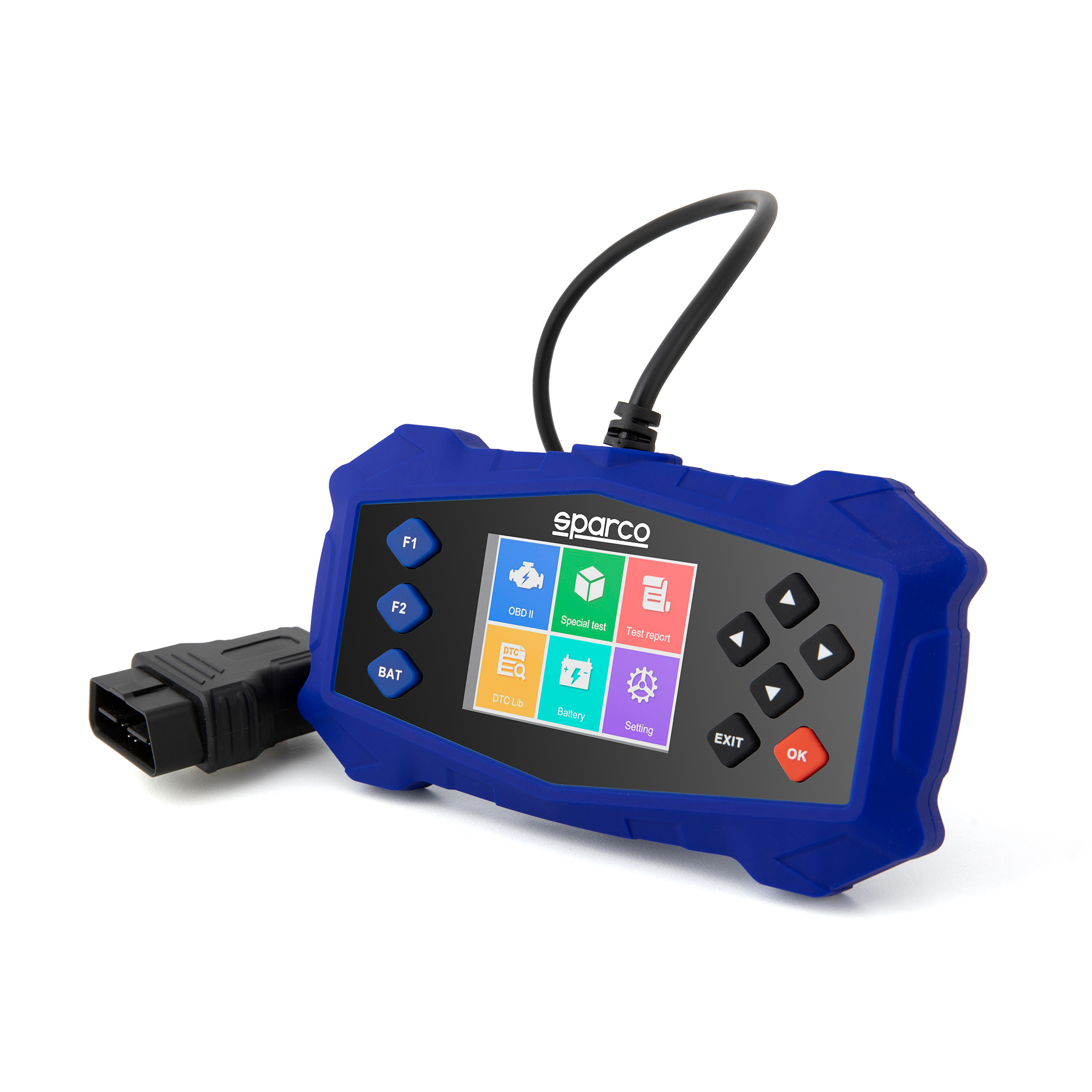

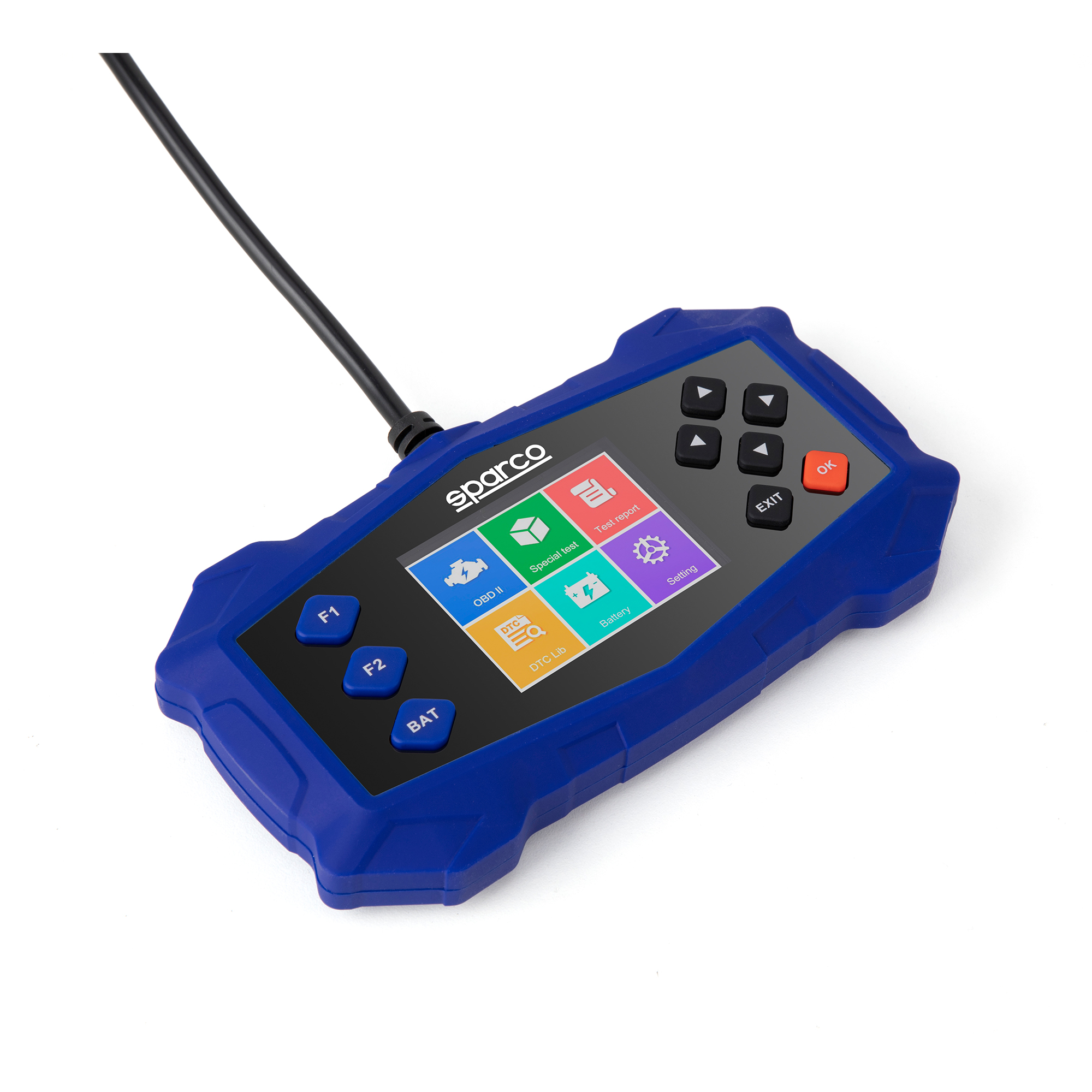

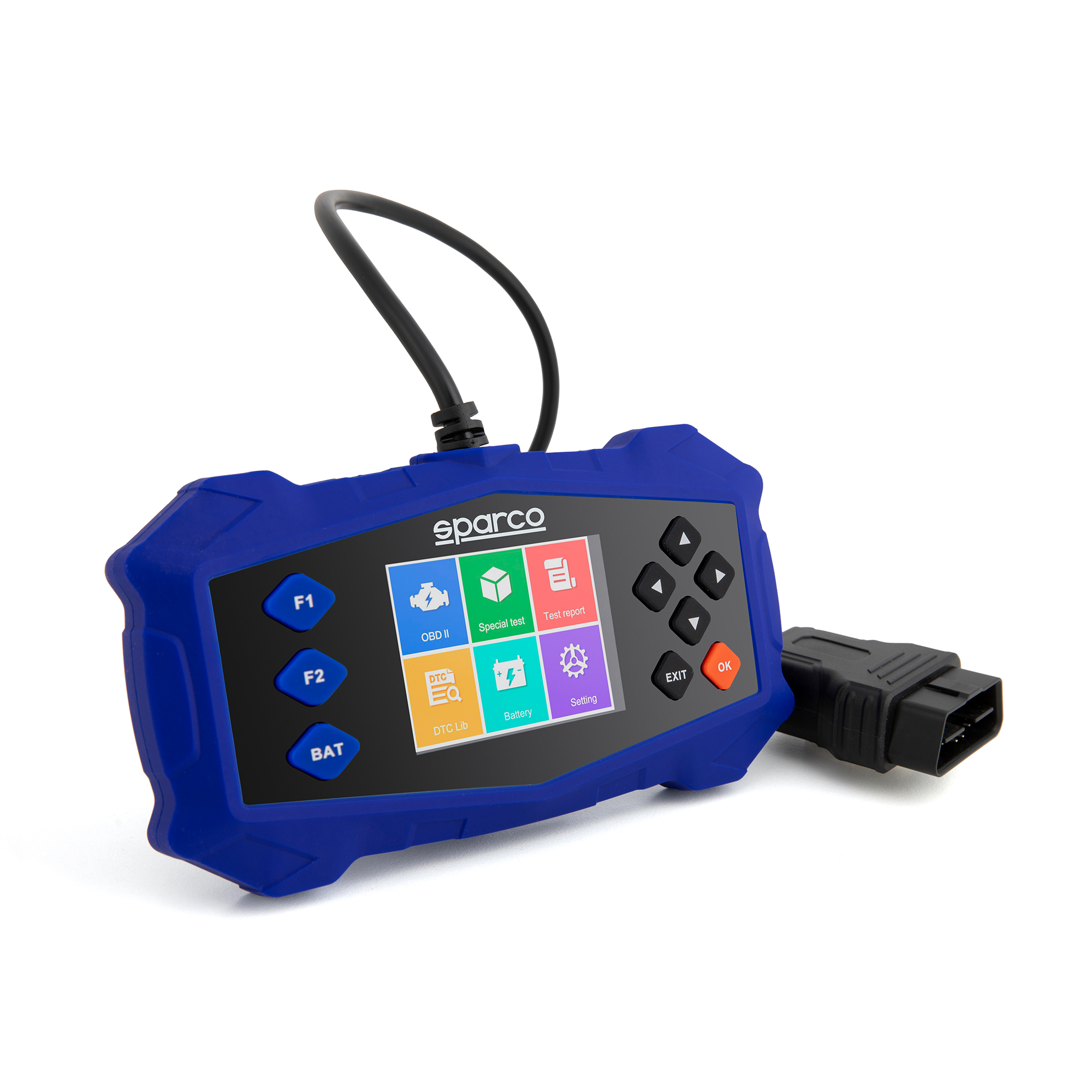

ODB2 SCANNER

Specifications:

• Operating voltage: DC 9V to 16V
• Operating current: 41mA to 63mA
• Operating environment: -20 to 60℃
• Storage temperature: -20 to 60℃
• Product dimension: 177x95x27.3mm
• Support language:
  English, German, French, Spanish, Italian,Portuguese, Russian, Dutch, Polish,Japanese, Chinese, Arabic.

Function:
· Carbon deposition detection

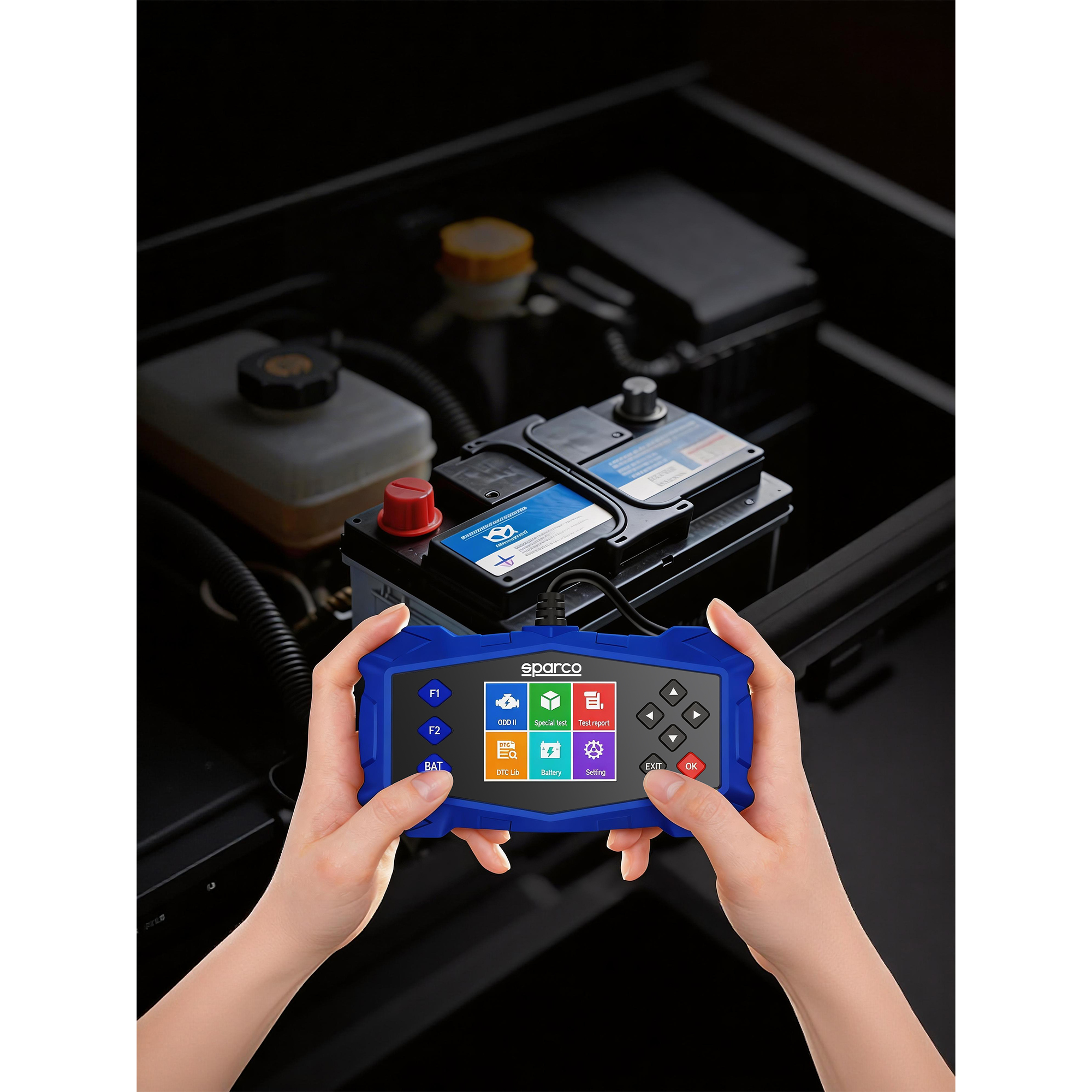

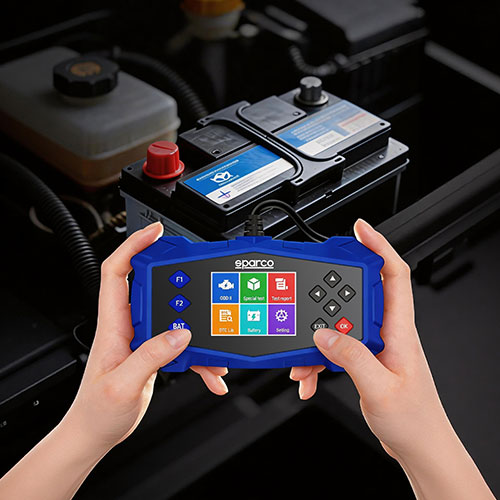

· Battery health test

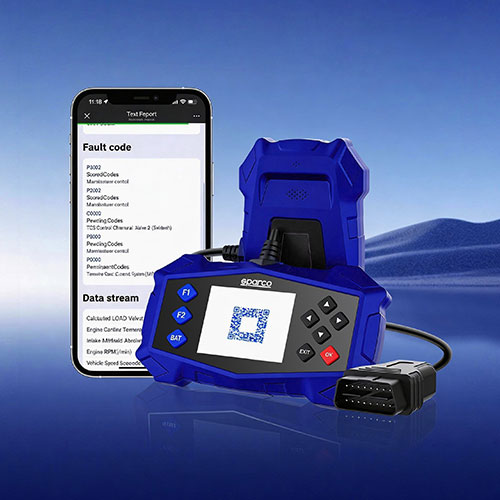

· Testing report
· Maintenance assistance
· Air flow detection
· Fuel test
· Performance test
· Cloud print
· Read codes
· Clearcodes
· Data flow
· Fault code inquiry
· Freeze frames
· l/M ready status
· Vehicle information
· Mode 6
· Mode8
· Oxygen sensor detection

Protocols:

• SAE J1850 PWM (41.6 Kbaud)
• SAE J1850 VPW (10.4 Kbaud)
• ISO 9141-2 (5 baud init, 10.4 Kbaud)
• ISO 14230-4 KWP (5 baud init, 10.4 Kbaud)
• ISO 14230-4 KWP (fast init, 10.4 Kbaud)
• ISO 15765-4 CAN (11-bit ID, 500 Kbaud)
• ISO 15765-4 CAN (29-bit ID, 500 Kbaud)
• ISO 15765-4 CAN (11-bit ID, 250 Kbaud)
• ISO 15765-4 CAN (29-bit ID, 250 Kbaud)
